Introduction
Allows you to press a button on the startpage that lets you scan a barcode in order to login. After login there is the possibility to enter a tracking number that will be passed to a report in admin.
Minimimum version: InventoryOS 1.322
Supported platform: Coolers
Setting
- CardMembershipType: BARCODE_LOGIN
- BarcodeReader: (Value depends on the provided reader)
- KioskProperties:
- Leave empty to have an optional tracking id field.
- BarcodeLoginMandatoryId: It’s mandatory to fill in something.
- BarcodeLoginNoId: Will not ask for an Id at all.
Keywords
| Page | Keyword | Default Text |

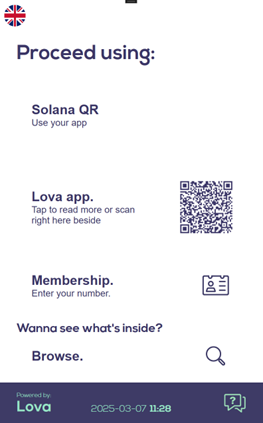

| StartPage Button | new_start_page_padel_membership | Membership. |
| start_page_padel_membership_sub | Enter your number. | |

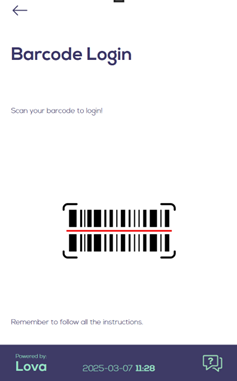

| Barcode Login Page | barcode_login_instructions_bottom | Remember to follow all the instructions. |
| barcode_login_page_title1 | Barcode Login | |
| barcode_login_instructions | Scan your barcode to login! | |

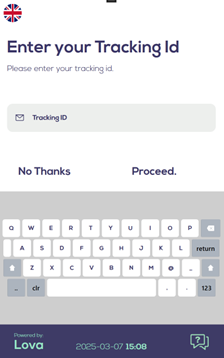

| Tracking Id Page | tracking_id_page_title | Enter your Tracking Id |
| tracking_id_page_info | Please enter your tracking id. | |
| tracking_id_page_code_watermark | Tracking ID | |
| tracking_id_no_button | No Thanks | |
| tracking_id_yes_button | Proceed. | |
| msgbox_need_to_enter_trackingid | You need to fill out your tracking id! |
Admin
Config
Navigate to PayaP -> Corporate Card -> Details in Admin and follow the documentation about Corporate Cards.

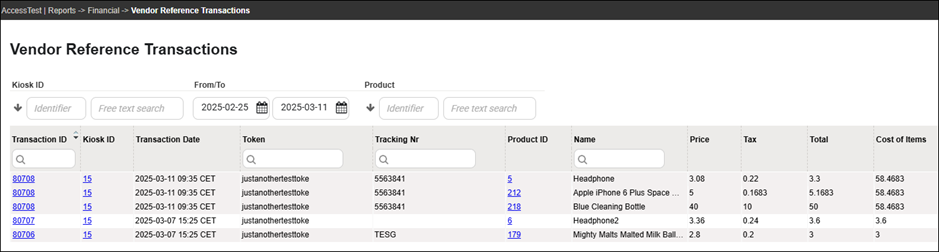

Report
In Admin navigate to: Reports -> Financial -> Vendor Reference Transactions
- Token: The barcode number scanned upon login.
- Tracking Nr: The identifier written by the user at the kiosk after login.
- Total: The row price+tax.
- Cost of Items: The total cost of all items in the transaction.
Screenshots
