Changing the Theme

The theme of the kiosk is managed through the Admin back office. Follow the steps below to change the theme and update images such as the logo or start page background

Uploading an Image (Logo or Start Image)

To upload an image to the Admin panel and use it on the kiosk, follow these steps:

1. Log in to the admin backend using your credentials.

2. Navigate to Network > Media Upload.

3. Under Select media type, choose Background Image / Logo.

4. In Media name, enter a name for the image.

5. Click Browse, select the image (must be in PNG format), and click Upload.

Assigning the Uploaded Image to a Kiosk

After uploading the image, assign it to the desired kiosk:

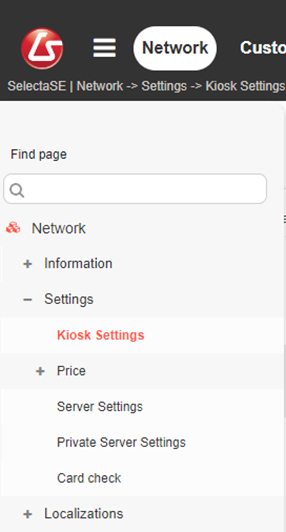

Go to Network > Settings > Kiosk Settings.

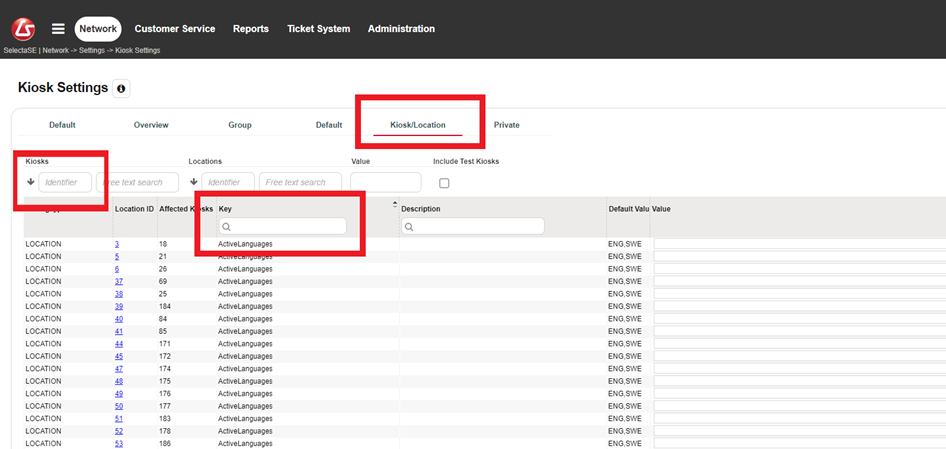

1. Navigate to the Kiosk/Location tab.

2. Locate the kiosk by searching for its name.

3. In the Key field, search for the following values and update them:

   • LogoImage: Enter the name of the uploaded logo image (e.g., logo.png).

   • StartPageImage: Enter the name of the uploaded start page image (e.g., start_image.png).

4. Sync the settings and files on the kiosk.:

   1. Click 5 times in the top left corner to reach the login page.

   2. Click 5 more times to access the sync page.

   3. Click the following buttons in order:

      1. Settings

      2. Missing Inventory

      3. Files and Images

      4. Run Kiosk Commands

5. Restart InventoryOS to apply the changes:

   • On the home page, click 5 times on the top left corner to access the login page.

   • Log in to the kiosk backend (Merchandiser View).

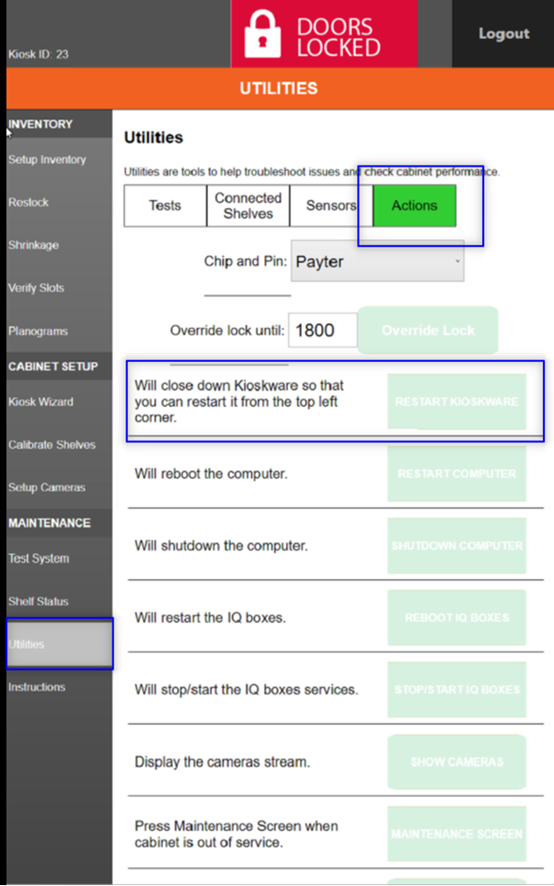

   • Go to Utilities > Actions and click RESTART KIOSKWARE.

Updating Theme Settings

If you need to modify additional theme settings, follow these steps:

1. Log in to the admin panel.

2. Go to Network > Settings > Kiosk Settings.

3. Open the Kiosk/Location tab and search for the kiosk.

4. Update the following key values as needed:

5. Sync the settings and files by following these steps:

   • Click 5 times in the top left corner to reach the login page.

   • Click 5 more times to access the sync page.

   • Click the following buttons in order:

     1. Settings

     2. Missing Inventory

     3. Files and Images

     4. Run Kiosk Commands

6. Restart InventoryOS:

   • On the home page, click 5 times on the top left corner to access the login page.

   • Log in to the kiosk backend (Merchandiser View).

   • Go to Utilities > Actions and click RESTART KIOSKWARE.
