Nayax Documentation
Let Nayax operator know this should be set up for use with Instant Systems, for which they should have a Gold standard group configuration they can apply.
Kiosk Settings:
ChipAndPinPortConfig: {"Host":"COM1", "Baud": 115200}
Json-style setting, can likely be left empty for most scenarios
Host - control target serial port, default to COM1
Baud – device communication speed, defaults to 115200
ChipAndPinTransactionKey: "{TokenID} {TokenValue}"
Values received from Nayax to allow server side processing (capture, void)
Ex “111222333 abcdefghijklmnopqrstuvwxyz-_0123456789abcdefghijklmnopqrstuvwxyz-“
ChipAndPinSerialNumber: Card reader serial number
ChipAndPinReader: nayax

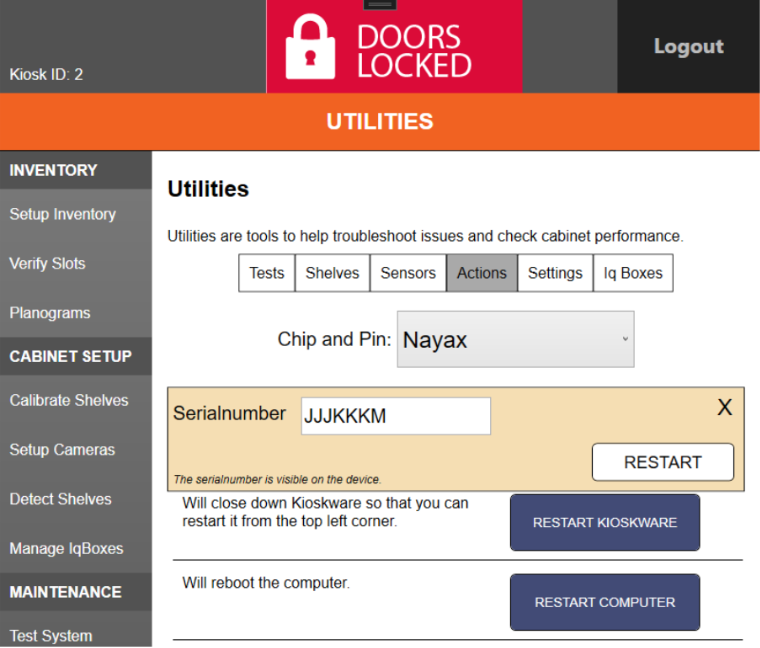

Can be set in GUI from release 1.566
Installation
Plug ethernet into harness slot marked “Ethernet”, note that there may be a similar port available, which should not be used.
Plug RS232 from harness into computer in to the COM1 port
(if available, else any of the other ones. Please note that you then need to look at the ChipAndPinPortConfig section) – this can be done while the kiosk software is running if already configured properly; when connected to the correct port, the device should react shortly. .
Can be run in AlwaysOn mode, (KioskProperties |= CnPAlwaysOn)
